Spindles
Part No.: HS-2001
Description : Hot Forged Butt Weld Style Spindle

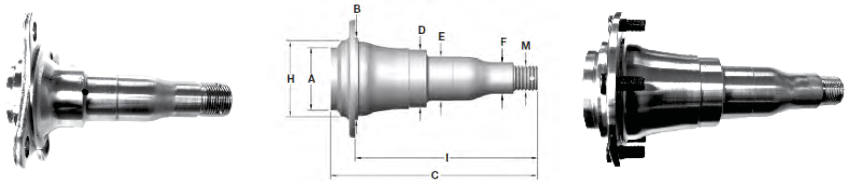

HOT FORGED INTEGRATED FLANGE
| DESCRIPTION | DESCRIPTION | ||||||||||
| Part No. | Spindle | Capacity | Unit WT. | A | B | C | D | E | F | H | I |
| HFF-1001 | #84 | 1,750 lb. | 3.29 lb. | 1.95" | 3.00" | 6.35" | 1.72" | 1.376" | 1.062" | 2.45" | 5.36" |
| HFF-1002 | #84 | 1,750 | 3.97 | 2.55" | 3.00" | 6.35" | 1.72" | 1.376" | 1.062" | 3.00" | 5.46" |
| HFF-1003 | #42 | 3,500 | 7.31 | 2.45" | 3.25" | 8.25" | 2.13" | 1.749" | 1.249" | 3.00" | 7.25" |
| HFF-1004 | #42 | 3,500 | 7.31 | 2.45" | 3.25" | 8.25" | 2.25" | 1.749" | 1.249" | 3.00" | 7.25" |

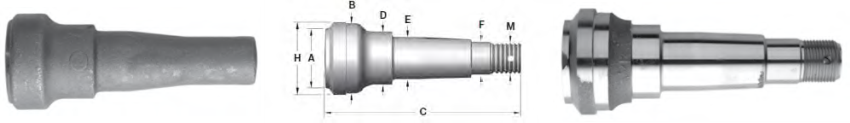

HOT FORGED
| DESCRIPTION | DESCRIPTION | |||||||||
| Part No. | Spindle | Capacity | Unit WT. | A | B | C | D | E | F | H |
| HFF-1005 | Bt16 | 1,250 lb. | 3.20 lb. | 1.95" | 2.26" | 6.35" | 1.50" | 1.062" | 1.062" | 2.34" |
| HFF-1006 | #84 | 1,750 | 3.40 | 1.95" | 2.26" | 6.35" | 1.72" | 1.376" | 1.062" | 2.45" |
| HFF-1007 | #84 | 1,750 | 3.00 | 1.95" | 2.26" | 6.05" | 1.72" | 1.376" | 1.062" | 2.34" |
| HFF-1008 | #84 | 1,750 | 4.00 | 2.55" | 2.26" | 6.35" | 1.72" | 1.376" | 1.062" | 3.00" |
| HFF-1009 | #42 | 3,500 | 7.40 | 2.45" | 2.74" | 8.25" | 2.13" | 1.749" | 1.249" | 3.00" |
| HFF-1010 | #42 | 3,500 | 7.40 | 2.45" | 2.74" | 8.25" | 2.25" | 1.749” | 1.249" | 3.00" |

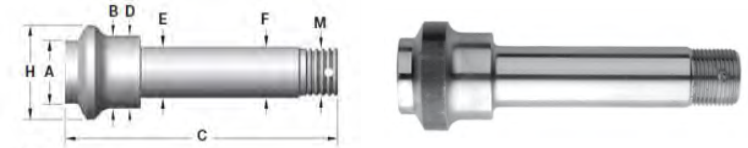

BAR STOCK
| DESCRIPTION | DESCRIPTION | |||||||||
| Part No. | Spindle | Capacity | Unit WT. | A | B | C | D | E | F | H |
| HFF-1005 | Bt16 | 1,250 lb. | 3.20 lb. | 1.95" | 2.26" | 6.35" | 1.50" | 1.062" | 1.062" | 2.34" |
| HFF-1006 | #84 | 1,750 | 3.40 | 1.95" | 2.26" | 6.35" | 1.72" | 1.376" | 1.062" | 2.45" |
| HFF-1007 | #84 | 1,750 | 3.00 | 1.95" | 2.26" | 6.05" | 1.72" | 1.376" | 1.062" | 2.34" |
| HFF-1008 | #84 | 1,750 | 4.00 | 2.55" | 2.26" | 6.35" | 1.72" | 1.376" | 1.062" | 3.00" |
| HFF-1009 | #42 | 3,500 | 7.40 | 2.45" | 2.74" | 8.25" | 2.13" | 1.749" | 1.249" | 3.00" |
| HFF-1010 | #42 | 3,500 | 7.40 | 2.45" | 2.74" | 8.25" | 2.25" | 1.749” | 1.249" | 3.00" |
