STEEL FABRICATED:
EQUALIZERS – 2" WIDE SPRINGS
The following steel fabricated equalizers are designed for the use of 2" wide slipper springs in a tandem or triple axle application. The equalizers are made to industry standards.
NOTE: Center bushing for EQ-5541 and EQ-4541 utilize .88" ID. nylon bushing encased in a 1.31" OD. x 1.06" ID. steel tube.

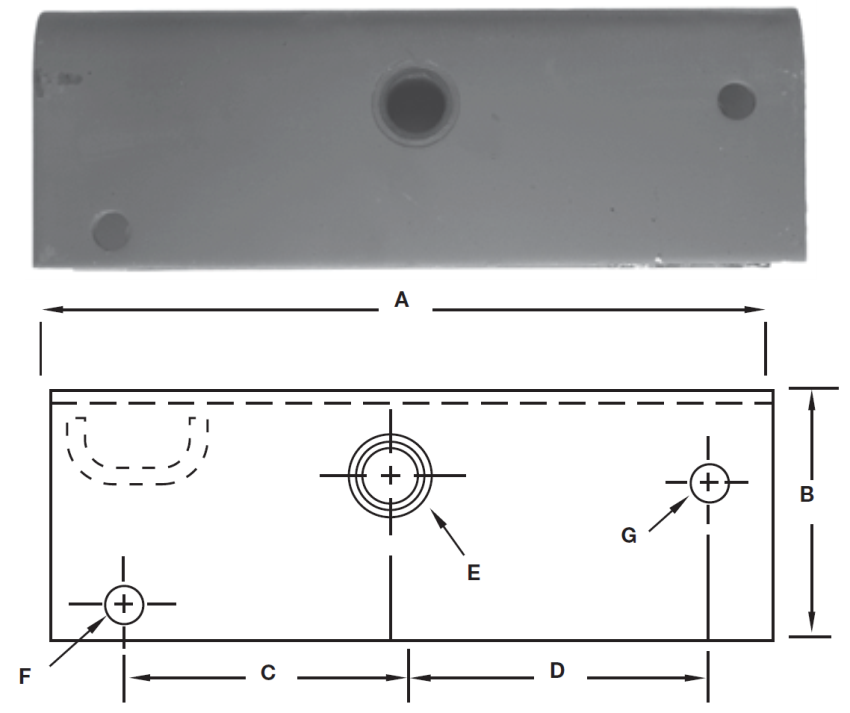

| Part No. | Dimensions | Ref. | Unit | Case | Case | |||||||
| A | B | C | D | E | F | G | T | No. | Wt. | Qty. | Wt. | |
| HSE-1401 | 11.00" | 3.50" | 5.19" | 4.63" | 0.88" | 0.44" | 0.56" | 0.22" | 13-4 | 6.60 lb. | 144 pc. | 950 lb. |
| HSE-1402 | 12.00 | 4.00 | 4.44 | 4.75 | 0.88 | 0.56 | 0.56 | 0.31 | 5541 | 9.80 | 126 | 1,235 |
| HSE-1403 | 13.00 | 3.50 | 5.94 | 5.50 | 0.88 | 0.44 | 0.56 | 0.22 | 13-44-1 | 7.78 | 144 | 1,120 |
| HSE-1404 | 12.00 | 4.00 | 4.44 | 4.75 | 0.88 | 0.56 | 0.56 | 0.24 | 4541 | 8.20 | 126 | 1,035 |
• Material : High quality hot rolled structural steel.
• All equalizers use a .88” equalizer bolt.
• Dimension “T” equal thickness of material.
• EQ-1304 and EQ-1344 not supplied with nylon bushing.
• The specifications and dimensions above are for reference only.
* Non-stock items. Minimum order quantities and longer lead time will apply.
