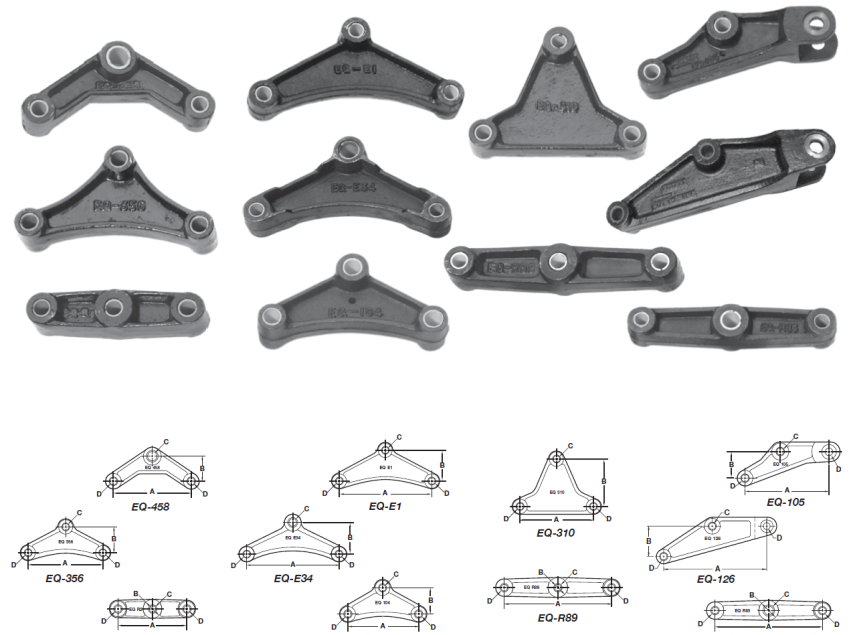

Cast Equalizers
All cast equalizers are manufactured from ductile iron. Equalizers are manufactured to industry standards and come finished in black paint.
| Part No. | Dimensions | Unit | Case | Case | |||
| A | B | C | D | Wt. | Wt. | Wt. | |
| HCE-4151 | 5.50" | 1.50" | 0.563" | 0.563" | 2.65 lb. | 250 pc. | 715 lb. |
| HCE-4152 | 5.75 | 2.00 | 0.563 | 0.563 | 1.95 | 1,000 | 2,000 |
| HCE-4153 | 6.25 | 2.00 | 0.750 | 0.563 | 2.35 | 900 | 2,225 |
| HCE-4154 | 9.06 | 3.00 | 0.563 | 0.563 | 3.90 | 300 | 1,240 |
| HCE-4155 | 7.75 | 2.88 | 0.750 | 0.563 | 3.45 | 700 | 2,520 |
• The specifications and dimensions above are for reference only.
* Non-stock items. Minimum order quantities and longer lead time will apply.
