Check Chain Clevis Eye Bolt
This Eye Bolt Fastens To Lift Arm Replaces Ford NCB660A; Fits Ferguson 20 & 30 With 9/16" Hex Nut
| Part No. |
| HB CCE 71001 |
Check Chain Clevis
This clevis fastens to tractor replaces Ford 9N582; FITS MF 20,30, 35,40,50
| Part No. |
| HB CCC 72001 |

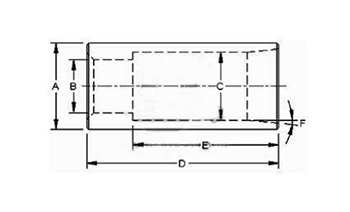

Tine Bushes
Precision Machined also available in self finish.
| Part No. | Outer | Inner | Inner | Length | Depth | Angle | Weight |
| Dia. A(mm) | Dia. B(mm) | Dia. C(mm) | D(mm) | E(mm) | F | In Kg. | |
| HB TB 73001 | 38 | 25.4 | 31 | 95 | 74 | 4° 30 | 0.3 |
| HB TB 73002 | 40 | 23 | 25 | 105 | 78 | 5° | 0.45 |
| HB TB 73003 | 41 | 24 | 32 | 110 | 79 | 5° | 0.51 |
| HB TB 73004 | 41 | 24 | 32 | 110 | 79 | 5° | 0.6 |
| HB TB 73005 | 41 | 25.4 | 30 | 108 | 80 | 5°30 | 0.5 |
| HB TB 73006 | 45 | 25 | 0.00 | 110 | 0.00 | 5° | 0.765 |
| HB TB 73007 | 50 | 23 | 29 | 110 | 85 | 6° | 1.8 |
| HB TB 73008 | 50 | 25 | 29 | 110 | 85 | 6° | 1.08 |
| HB TB 73009 | 50 | 28 | 0 | 105 | 0 | 10° | 1.05 |
| HB TB 73010 | 50 | 30 | 36 | 108 | 80 | 5°30" | 0.76 |
| HB TB 73011 | 50 | 30 | 39 | 110 | 84 | 6° | 1.63 |
| HB TB 73012 | 51 | 25 | 32 | 110 | 109 | 5°30 | 1.085 |
| HB TB 73013 | 51 | 30 | 38 | 110 | 86 | 5° | 0.755 |
| HB TB 73014 | 55 | 32 | 0 | 120 | 0 | 4°30 | 1.24 |
| HB TB 73015 | 33 | 0 | 14 | 63 | 46 | 3° | 0.292 |
| HB TB 73016 | 33 | 0 | 16.5 | 63 | 48 | 1.5° | 0.281 |
| HB TB 73017 | 33 | 0 | 16.5 | 63 | 48 | 1.5° | 0.263 |
| HB TB 73018 | 33 | 0 | 16.5 | 63 | 48 | 1.5° | 0.281 |
| HB TB 73019 | 33 | 0 | 16.5 | 63 | 48 | 1.5° | 0.256 |
| HB TB 73020 | 45 | 22 | 28 | 97 | 75 | 5° | 1.27 |
| HB TB 73021 | 50 | 32 | 39 | 110 | 84 | 5.5° | 1.02 |
| HB TB 73022 | 60 | 32 | 39 | 110 | 84 | 5.5° | 1.8 |
