Drawbars

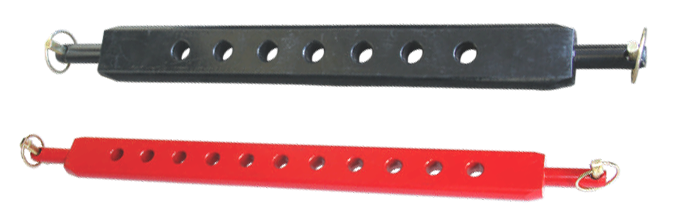

We offer high quality draw bars for safe and comfortable towing. Our range of drawbars are made from highest grade of metal and alloys that ensures a long life performance. We specializes in manufacturing both cross type as well as swinging draw bars in diverse specifications.

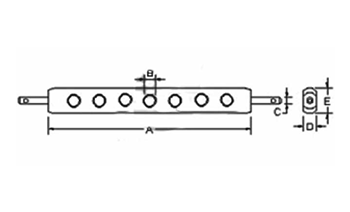

| Part No. | CAT | Noof Holes | Lift Arm Spacing | Hole Diam. | Pin Diam. | Thickness | Width | Ship Weight |
| A (mm) | B (mm) | C (mm) | D (mm) | E | in Kg. | |||
| HB DB 16001 | 1 | 4 | 304 | 22 | 22 | 22 | 62 | 3.59 |
| HB DB 16002 | 1 | 5 | 400 | 22 | 22 | 24 | 62 | 5.495 |
| HB DB 16003 | 1 | 5 | 407 | 19 | 22 | 27 | 62 | 5.3 |
| HB DB 16004 | 1 | 5 | 510 | 26 | 22 | 27 | 62 | 5.35 |
| HB DB 16005 | 1 | 7 | 404 | 20 | 22 | 29 | 62 | 5.34 |
| HB DB 16006 | 1 | 7 | 550 | 20 | 22 | 29 | 62 | 7.34 |
| HB DB 16007 | 1 | 7 | 550 | 20 | 22 | 29 | 62 | 7.34 |
| HB DB 16008 | 1 | 7 | 550 | 20 | 22 | 29 | 62 | 7.34 |
| HB DB 16009 | 1 | 7 | 595 | 26 | 22 | 29 | 62 | 7.66 |
| HB DB 16010 | 1 | 7 | 604 | 22 | 22 | 29 | 62 | 8.02 |
| HB DB 16011 | 1 | 7 | 660 | 26 | 22 | 29 | 62 | 8.555 |
| HB DB 16012 | 1 | 9 | 524 | 26 | 22 | 29 | 62 | 6.02 |
| HB DB 16013 | 1 | 9 | 657 | 20 | 22.2 | 29 | 62 | 8.865 |
| HB DB 16014 | 1 | 9 | 657 | 20 | 22.2 | 29 | 62 | 8.865 |
| HB DB 16015 | 1 | 9 | 684 | 22 | 22 | 29 | 62 | 8.935 |
| HB DB 16016 | 1 | 11 | 661 | 20 | 22.2 | 29 | 62 | 8.575 |
| HB DB 16017 | 1 | 11 | 661 | 20 | 22.2 | 29 | 62 | 8.575 |
| HB DB 16018 | 1 | 11 | 661 | 20 | 22.2 | 29 | 62 | 8.575 |
| HB DB 16019 | 2 | 5 | 400 | 22 | 28.5 | 29 | 62 | 5.83 |
| HB DB 16020 | 2 | 7 | 661 | 26 | 28 | 31 | 75 | 11.55 |
| HB DB 16021 | 2 | 7 | 662 | 26 | 28 | 29 | 62 | 8.86 |
| HB DB 16022 | 2 | 7 | 764 | 28 | 28 | 29 | 79 | 13.25 |
| HB DB 16023 | 2 | 7 | 802 | 32 | 28.5 | 44 | 89 | 21.94 |
| HB DB 16024 | 2 | 7 | 802 | 32 | 28.5 | 44 | 89 | 21.94 |
| HB DB 16025 | 2 | 7 | 842 | 28 | 28.5 | 29 | 62 | 11.15 |
| HB DB 16026 | 2 | 7 | 842 | 28 | 28.5 | 29 | 62 | 11.15 |
| HB DB 16027 | 2 | 9 | 660 | 22 | 28.5 | 29 | 62 | 9.02 |
| HB DB 16028 | 2 | 9 | 661 | 20 | 28.5 | 29 | 62 | 9.055 |
| HB DB 16029 | 2 | 9 | 661 | 20 | 28.5 | 29 | 62 | 9.055 |
| HB DB 16030 | 2 | 9 | 760 | 22 | 28..5 | 29 | 62 | 10.375 |
| HB DB 16031 | 2 | 9 | 762 | 26 | 28 | 29 | 62 | 9.7 |
| HB DB 16032 | 2 | 9 | 762 | 26 | 28 | 31 | 75 | 12.96 |
| HB DB 16033 | 2 | 9 | 819 | 26 | 28 | 29 | 62 | 10.77 |
| HB DB 16034 | 2 | 9 | 819 | 26 | 28 | 29 | 62 | 10.77 |
| HB DB 16035 | 2 | 9 | 819 | 26 | 28 | 29 | 62 | 10.77 |
| HB DB 16036 | 2 | 9 | 819 | 26 | 28 | 31 | 75 | 14.05 |
| HB DB 16037 | 2 | 9 | 820 | 33 | 28.5 | 29 | 79 | 13.275 |
| HB DB 16038 | 2 | 9 | 864 | 26 | 28 | 44 | 89 | 23.91 |
| HB DB 16039 | 2 | 11 | 661 | 20 | 28.5 | 29 | 62 | 8.905 |
| HB DB 16040 | 2 | 11 | 661 | 20 | 28.5 | 29 | 62 | 8.905 |
| HB DB 16041 | 2 | 11 | 824 | 22 | 28.5 | 29 | 62 | 10.92 |
| HB DB 16042 | 2 | 11 | 824 | 22 | 28.5 | 31 | 75 | 14.23 |
| HB DB 16043 | 3 | 7 | 965 | 32 | 36.5 | 44 | 89 | 27.225 |
| HB DB 16044 | 3 | 7 | 965 | 32 | 36.5 | 44 | 89 | 27.225 |
| HB DB 16045 | 3 | 7 | 965 | 32 | 36.5 | 44 | 89 | 27.225 |
| HB DB 16046 | 2 | 9 | 820 | 33 | 28.5 | 29 | 79 | 13.275 |
