Drill Drag Chain
Grain drill chains help cover seeds planted in furrows with out back tracking over the seeds that were just planted. Drill drag chains are precision engineered to fit standard seed drills.
| Part No. | RING DIAMETER | RING THICKNESS |
| HB DC 48001 | 3-1/2 " | 1/2 " |
Adapter Bushings
Adapter bushings for CAT 1 & CAT 2 quick hitches. Yellow zinc dichromate.
| Part No. |
| HB SB 49001 |
Shaft Locking Collars
Shaft collars are used as mechanical stops, locating components & bearing faces. It is very easy to install. Yellow zinc dichromate lated.

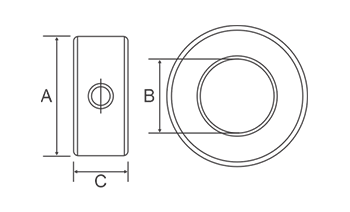

| Part No. | Shaft Size | Out Side | Inside | With | Screwsize |
| Dia A(mm) | Dia B (mm) | C(mm) | |||
| HB SLC 50001 | 1/4 | 12.7 | 6.86 | 7.14 | 10 32 |
| HB SLC 50002 | 5/16 | 15.88 | 8.46 | 8.74 | 10 32 |
| HB SLC 50003 | 3/8 | 19.05 | 10.03 | 9.53 | 1/4 x20 |
| HB SLC 50004 | 7/16 | 22.23 | 11.63 | 11.13 | 1/4 x20 |
| HB SLC 50005 | 1/2 | 25.4 | 13.21 | 12.7 | 1/4 x20 |
| HB SLC 50006 | 9/16 | 28.58 | 14.81 | 14.3 | 1/4 x20 |
| HB SLC 50007 | 5/8 | 28.58 | 16.38 | 14.3 | 5/16 x 18 |
| HB SLC 50008 | 11/16 | 34.93 | 17.98 | 15.88 | 5/16 x 18 |
| HB SLC 50009 | 3/4 | 34.93 | 19.56 | 15.88 | 5/16 x 18 |
| HB SLC 50010 | 13/16 | 38.1 | 21.16 | 15.88 | 5/16 x 18 |
| HB SLC 50011 | 7/8 | 38.1 | 22.73 | 15.88 | 5/16 x 18 |
| HB SLC 50012 | 15/16 | 41.28 | 24.33 | 15.88 | 5/16 x 18 |
| HB SLC 50013 | 1 | 41.28 | 25.91 | 15.88 | 5/16 x 18 |
| HB SLC 50014 | 1-1/16 | 44.45 | 27.51 | 15.88 | 5/16 x 18 |
| HB SLC 50015 | 1-3/16 | 50.8 | 30.68 | 17.48 | 3/8 x 16 |
| HB SLC 50016 | 1-1/4 | 50.8 | 32.26 | 17.48 | 3/8 x 16 |
| HB SLC 50017 | 1-5/16 | 53.98 | 33.86 | 19.05 | 3/8 x 16 |
| HB SLC 50018 | 1-3/8 | 53.98 | 35.43 | 19.05 | 3/8 x 16 |
| HB SLC 50019 | 1-7/16 | 57.15 | 37.03 | 19.05 | 3/8 x 16 |
| HB SLC 50020 | 1-1/2 | 57.15 | 38.61 | 20.65 | 3/8 x 16 |
| HB SLC 50021 | 1-5/8 | 63.5 | 41.78 | 22.23 | 3/8 x 16 |
| HB SLC 50022 | 1-3/4 | 69.85 | 44.96 | 22.23 | 1/2 x 13 |
| HB SLC 50023 | 1-7/8 | 69.85 | 48.13 | 22.23 | 1/2 x 13 |
| HB SLC 50024 | 1-15/16 | 76.2 | 49.73 | 22.23 | 1/2 x 13 |
| HB SLC 50025 | 2 | 76.2 | 51.31 | 22.23 | 1/2 x 13 |
