Forged Top Link Replacement Ends

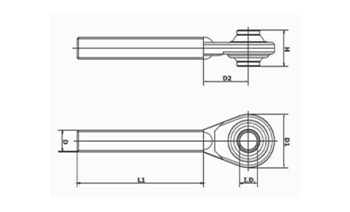

| Part No. | CAT | I.D. | Threaded D | L1 | D1 | D2 | H |
| HB TLE 12001 | 0 | 16 | M20X2.5R | 85 | 48 | 40 | 25.4 |
| HB TLE 12002 | 0 | 16 | M20X2.5L | 85 | 48 | 40 | 25.4 |
| HB TLE 12003 | 1 | 19 | M22X2.5R | 95 | 58 | 50 | 44 |
| HB TLE 12004 | 1 | 19 | M22X2.5L | 95 | 58 | 50 | 44 |
| HB TLE 12005 | 1 | 19 | M22X2.5R | 115 | 58 | 50 | 44 |
| HB TLE 12006 | 1 | 19 | M22X2.5L | 115 | 58 | 50 | 44 |
| HB TLE 12007 | 1 | 19 | M24X2.5R | 115 | 58 | 50 | 44 |
| HB TLE 12008 | 1 | 19 | M24X2.5L | 115 | 58 | 50 | 44 |
| HB TLE 12009 | 1 | 19 | M24X3 R | 115 | 58 | 50 | 44 |
| HB TLE 12010 | 1 | 19 | M24X3 L | 115 | 58 | 50 | 44 |
| HB TLE 12011 | 1 | 19 | M24X3 R | 155 | 62 | 50 | 44 |
| HB TLE 12012 | 1 | 19 | M24X3 L | 155 | 62 | 50 | 44 |
| HB TLE 12013 | 2 | 25.4 | M24X3 R | 165 | 75 | 55 | 51 |
| HB TLE 12014 | 2 | 25.4 | M24X3 L | 165 | 75 | 55 | 51 |
| HB TLE 12015 | 1 | 19 | M27X3 R | 150 | 58 | 50 | 44 |
| HB TLE 12016 | 1 | 19 | M27X3 L | 150 | 58 | 50 | 44 |
| HB TLE 12017 | 2 | 25.4 | M27X3 R | 165 | 66 | 50 | 51 |
| HB TLE 12018 | 2 | 25.4 | M27X3 L | 165 | 66 | 50 | 51 |
| HB TLE 12019 | 2 | 25.4 | M27X3 R | 165 | 75 | 50 | 51 |
| HB TLE 12020 | 2 | 25.4 | M27X3 L | 165 | 75 | 50 | 51 |
| HB TLE 12021 | 1 | 19 | M30X3 R | 155 | 58 | 50 | 44 |
| HB TLE 12022 | 1 | 19 | M30X3 L | 155 | 58 | 50 | 44 |
| HB TLE 12023 | 1 | 19 | M30X3.5 R | 155 | 58 | 50 | 44 |
| HB TLE 12024 | 1 | 19 | M30X3.5 L | 155 | 58 | 50 | 44 |
| HB TLE 12025 | 2 | 25.4 | M30X3 R | 165 | 75 | 55 | 51 |
| HB TLE 12026 | 2 | 25.4 | M30X3 L | 165 | 75 | 55 | 51 |
| HB TLE 12027 | 2 | 25.4 | M30X3.5 R | 165 | 75 | 55 | 51 |
| HB TLE 12028 | 2 | 25.4 | M30X3.5 L | 165 | 75 | 55 | 51 |
| HB TLE 12029 | 2 | 25.4 | M36X3 R | 165 | 80 | 55 | 51 |
| HB TLE 12030 | 2 | 25.4 | M36X3 L | 165 | 80 | 55 | 51 |
| HB TLE 12031 | 2 | 25.4 | M36X3 R | 175 | 80 | 55 | 51 |
| HB TLE 12032 | 2 | 25.4 | M36X3 L | 175 | 80 | 55 | 51 |
| HB TLE 12033 | 2 | 25.4 | M36X3 R | 200 | 96 | 70 | 51 |
| HB TLE 12034 | 2 | 25.4 | M36X3 L | 200 | 96 | 70 | 51 |
| HB TLE 12035 | 3 | 32 | M36X3 R | 200 | 96 | 70 | 51 |
| HB TLE 12036 | 3 | 32 | M36X3 L | 200 | 96 | 70 | 51 |
| HB TLE 12037 | 2 | 25.4 | M40X3 R | 170 | 80 | 60 | 51 |
| HB TLE 12038 | 2 | 25.4 | M40X3 L | 170 | 80 | 60 | 51 |
