10K GENERAL DUTY STEEL FABRICATED
EQUALIZERS : 2-1/2" WIDE SPRINGS

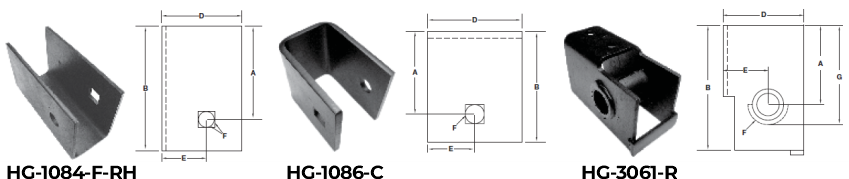

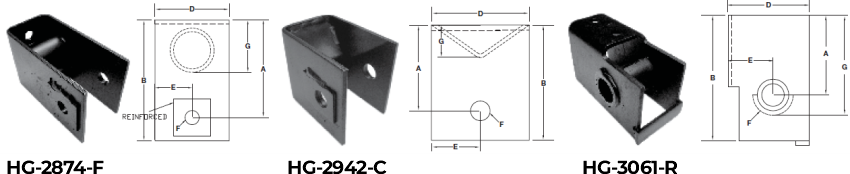

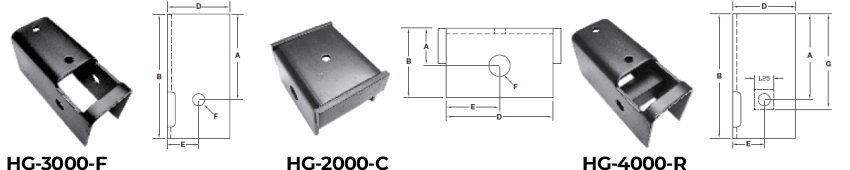

Each of the hanger sets below correspond to the steel fabricated equalizers directly opposite on page 30.
| Part No. | Dimensions | Ref. | Unit | Case | Case | |||||||
| A | B | C | D | E | F | G | T | No. | Wt. | Qty. | Wt. | |
| HSE-1701 | 5.50" | 8.00" | 2.75" | 4.00" | 2.00" | 0.78" | N/A | 0.24" | 3000 | 4.60 lb. | 395 pc. | 1,817 lb. |
| HSE-1702 | 1.75 | 3.19 | 4.13 | 5.00 | 2.50 | 1.00 | N/A | 0.24 | 2000 | 5.00 | 395 | 1,975 |
| HSE-1703 | 5.50 | 8.00 | 2.75 | 4.00 | 2.00 | N/A | 6.13 | 0.24 | 4000 | 5.80 | 395 | 2,291 |
| HSE-1704 | 5.25 | 7.00 | 2.63 | 4.50 | 2.50 | 0.77 | N/A | 0.24 | 72-1084 | 5.30 | 350 | 1,840 |
| HSE-1705 | 5.25 | 7.00 | 2.63 | 4.50 | 2.50 | 0.77 | N/A | 0.24 | 72-1084 | 5.30 | 350 | 1,840 |
| HSE-1706 | 4.38 | 5.88 | 3.25 | 5.00 | 2.50 | 1.06 | N/A | 0.37 | 72-1086 | 7.23 | 350 | 2,530 |
| HSE-1707 | 4.44 | 7.00 | 2.62 | 4.50 | 2.50 | 2.25 | 5.56 | 0.24 | 72-1085 | 5.84 | 350 | 2,045 |
| HSE-1708 | 5.25 | 6.50 | 2.63 | 4.00 | 2.00 | 0.76 | 2.75 | 0.19 | 28-74 | 4.30 | 330 | 1,420 |
| HSE-1709 | 4.25 | 5.63 | 3.25 | 5.00 | 2.50 | 1.00 | 1.75 | 0.24 | 29-42 | 5.80 | 330 | 1,915 |
| HSE-1710 | 4.44 | 7.00 | 2.75 | 4.50 | 2.50 | 2.25 | 5.56 | 0.24 | 30-61 | 5.70 | 330 | 1,880 |
• Material: High quality hot rolled structural steel.
• Dimension “C” equals the inside width of the part.
• Dimension “T” equals thickness of material.
• The specifications and dimensions above are for reference only.
* Non-stock items. Minimum order quantities and longer lead time will apply.
