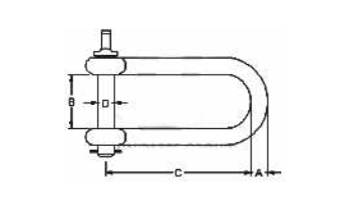

General Purpose Clevises
Medium carbon steel drop forged and stress relieved. Clevis body black powder coated and pin yellow zinc dichromate plated.
| Part No. | Body Dia | Clevis Opening | Usable Length | Pin Dia | WLL | WEIGHT |
| (A) ins : | (B) ins | (C) ins | (D) ins | (kg.) | IN KG. | |
| HB GPC 67001 | 0.75 | 2.50 | 6.57 | 0.75 | 4,500 | 1.83 |
Straight Clevises
Medium carbon steel drop forged and stress relieved. Clevis body black powder coated and pin yellow zinc dichromate plated.
| Part No. | Body Dia | Clevis Opening | Usable Length | Pin Dia | WLL | WEIGHT |
| (A) ins : | (B) ins | (C) ins | (D) ins | (kg.) | IN KG. | |
| HB SC 68001 | 0.63 | 0.87 | 3.54 | 0.50 | 2,700 | 0.662 |
| HB SC 68002 | 0.75 | 1.30 | 4.06 | 0.63 | 5,500 | 1.130 |
| HB SC 68003 | 0.87 | 1.30 | 3.7 | 0.75 | 7,250 | 1.412 |
| HB SC 68004 | 0.94 | 1.30 | 4.69 | 0.75 | 7,250 | 1.664 |
| HB SC 68005 | 0.94 | 1.44 | 5.12 | 0.87 | 9,000 | 1.950 |
| HB SC 68006 | 1 | 2.13 | 5.87 | 1 | 11,350 | 2.854 |

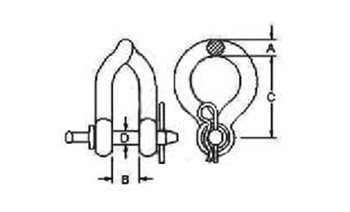

Twisted Clevises
"Medium carbon steel drop forged and stress relieved. Clevis body black powder coated and pin yellow zinc dichromate plated."
| Part No. | Body Dia | Clevis Opening | Usable Length | Pin Dia | WLL | WEIGHT |
| (A) ins : | (B) ins | (C) ins | (D) ins | (kg.) | IN KG. | |
| HB TC 69001 | 0.63 | 0.87 | 3.27 | 0.50 | 2,700 | 0.680 |
| HB TC 69002 | 0.75 | 1.30 | 3.86 | 0.63 | 5,500 | 1.20 |
| HB TC 69003 | 0.87 | 1.38 | 3.43 | 0.75 | 7,250 | 1.400 |
| HB TC 69004 | 0.87 | 1.30 | 4.29 | 0.75 | 7,250 | 1.630 |
| HB TC 69005 | 0.94 | 1.44 | 4.76 | 0.87 | 9,000 | 2.060 |
| HB TC 69006 | 1 | 1.12 | 5.55 | 1 | 11,350 | 2.800 |

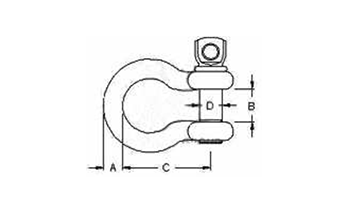

Farm Clevises
Medium carbon steel Drop Forged and Stress Relieved. Screw pin construction for multiple hitches & crawlertTractors. Clevis body black powder coated and screw pin yellow zinc dichromate plated.
| Part No. | Body Dia | Clevis Opening | Usable Length | Pin Dia | WLL | WEIGHT |
| (A) ins : | (B) ins | (C) ins | (D) ins | (kg.) | IN KG. | |
| HB FC 70001 | 0.24 | 0.47 | 1.3 | 0.32 | 450 | 0.063 |
| HB FC 70002 | 0.32 | 0.55 | 1.46 | 0.39 | 900 | 0.095 |
| HB FC 70003 | 0.39 | 0.71 | 1.65 | 0.43 | 1350 | 0.136 |
| HB FC 70004 | 0.43 | 0.75 | 0.75 | 1/2 | 1800 | 0.217 |
| HB FC 70005 | 0.63 | 1.06 | 2.88 | 0.75 | 4000 | 0.652 |
| HB FC 70006 | 0.87 | 1.44 | 3.74 | 1 | 6750 | 1.531 |
| HB FC 70007 | 1 | 1.69 | 4.37 | 1.12 | 7700 | 2.356 |
| HB FC 70008 | 1.12 | 1.81 | 4.88 | 1.26 | 10850 | 3.112 |
| HB FC 70009 | 1.26 | 2 | 5.2 | 1.38 | 12650 | 4.557 |
