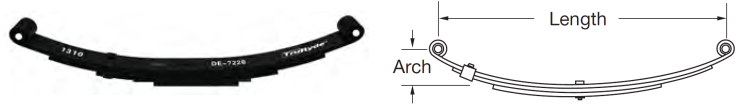

DOUBLE EYE : 1-3/4" WIDE
| Part No. |
Number |
Free |
Free |
Capacity |
Weight |
Skid |
Skid |
| Of Leaves |
Length |
Arch |
Per Spring |
Each |
Qty. |
Wt. |
| HLS-3011 |
3 |
20.00" |
3.25" |
1,500 lb. |
9.40 lb. |
200 pc. |
1,878 lb. |
| HLS-3012 |
4 |
20.50 |
3.38 |
1,400 |
9.30 |
200 |
1860 |
| HLS-3013 |
4 |
23.13 |
3.50 |
2,000 |
12.40 |
200 |
2480 |
| HLS-3014 |
6 |
24.88 |
3.38 |
3,500 |
18.30 |
150 |
2738 |
| HLS-3015 |
3 |
25.25 |
3.00 |
1,500 |
11.00 |
200 |
2200 |
| HLS-3016 |
4 |
25.25 |
3.00 |
2,500 |
15.10 |
200 |
3014 |
| HLS-3017 |
5 |
25.25 |
3.00 |
2,900 |
17.00 |
200 |
2125 |
| HLS-3018 |
5 |
25.25 |
3.00 |
2,950 |
16.30 |
125 |
2038 |
| HLS-3019 |
6 |
25.25 |
3.00 |
3,500 |
19.10 |
125 |
2388 |
| HLS-3020 |
2 |
26.00 |
4.13 |
350 |
7.00 |
200 |
1400 |
| HLS-3021 |
7 |
26.00 |
4.25 |
3,500 |
23.40 |
130 |
3043 |
| HLS-3022 |
8 |
26.00 |
4.25 |
4,000 |
27.20 |
125 |
3400 |

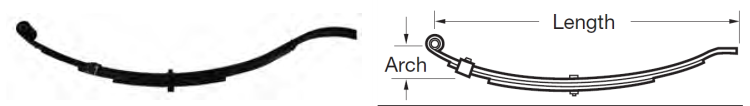

SLIPPER FLAT : 1-3/4" WIDE
| Part No. |
Number |
Free |
Free |
Capacity |
Weight |
Skid |
Skid |
| Of Leaves |
Length |
Arch |
Per Spring |
Each |
Qty. |
Wt. |
| HLS-3051 |
2 |
25.12" |
5.00" |
500 lb. |
5.80lb. |
250 pc. |
1,450 lb. |
| HLS-3052 |
3 |
25.12 |
5.00 |
750 |
7.90 |
250 |
1975 |
| HLS-3053 |
4 |
25.12 |
5.00 |
1000 |
9.50 |
250 |
2375 |
| HLS-3054 |
5 |
30.00 |
4.88 |
2400 |
18.30 |
150 |
2745 |

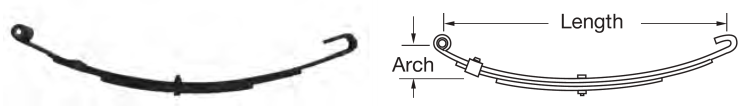

SLIPPER OPEN : 1-3/4" WIDE
| Part No. |
Number |
Free |
Free |
Capacity |
Weight |
Skid |
Skid |
| Of Leaves |
Length |
Arch |
Per Spring |
Each |
Qty. |
Wt. |
| HLS-3071 |
2 |
26.25" |
3.50" |
800 lb. |
8.30 lb. |
250 pc. |
2,075 lb. |
| HLS-3072 |
3 |
26.25 |
3.50 |
1750 |
12.10 |
200 |
2428 |
| HLS-3073 |
4 |
26.25 |
3.50 |
2350 |
14.90 |
200 |
2974 |
| HLS-3074 |
5 |
26.25 |
3.50 |
2850 |
17.40 |
150 |
2613 |
| HLS-3075 |
6 |
26.25 |
3.50 |
3500 |
21.30 |
125 |
2661 |
