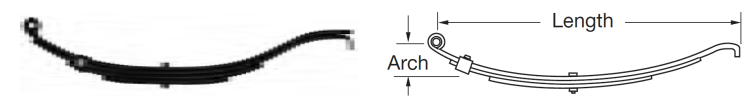

SLIPPER HOOK : 2" WIDE
| Part No. |
Number |
Free |
Free |
Capacity |
Weight |
Skid |
Skid |
| Of Leaves |
Length |
Arch |
Per Spring |
Each |
Qty. |
Wt. |
| HLS-3081 |
4 |
26.50" |
3.18" |
1,500 lb. |
15.80 lb. |
150 pc. |
2,366 lb. |
| HLS-3082 |
5 |
26.50 |
3.18 |
3,500 |
20.40 |
125 |
2,550 |
| HLS-3083 |
7 |
26.50 |
3.00 |
3,400 |
27.00 |
125 |
3,375 |
| HLS-3084 |
8 |
29.50 |
3.50 |
4,300 |
28.70 |
100 |
2,870 |
SLIPPER RADIUS : 1-3/4" WIDE
| Part No. |
Number |
Free |
Free |
Capacity |
Weight |
Skid |
Skid |
| Of Leaves |
Length |
Arch |
Per Spring |
Each |
Qty. |
Wt. |
| HLS-3091 |
1 |
24.62" |
4.50" |
280 lb. |
4.20lb. |
250 pc. |
1,050 lb. |
| HLS-3092 |
2 |
24.62 |
4.50 |
550 |
5.40 |
250 |
1,350 |
| HLS-3093 |
3 |
24.62 |
4.50 |
750 |
7.80 |
200 |
1,558 |
| HLS-3094 |
4 |
24.62 |
4.50 |
1,000 |
9.00 |
200 |
1,800 |
| HLS-3095 |
5 |
24.62 |
4.50 |
1,200 |
12.10 |
200 |
2,420 |
| HLS-3096 |
6 |
32.00 |
4.25 |
1,750 |
18.30 |
150 |
2,745 |
MOBILE HOME : 1-3/4" WIDE
| Part No. |
Number |
Free |
Free |
Capacity |
Bushing |
Weight |
Skid |
Skid |
| Of Leaves |
Length |
Arch |
Per Spring |
ID |
Each |
Qty. |
Wt. |
| HLS-3101 |
1 |
25.25" |
3.00" |
3,000 lb. |
0.590" Eye |
8.70 lb. |
440 pc. |
3,826 lb. |
• Nylon bushings, brass bushings and rubber bushings are available upon request.
• Bushing ID: Standard = Nylon 0.562", RB = Rubber 0.625", 1.03 = No Bushing 1.031"
* All specifications given are for reference only. Spring mounting will affect actual capacity. The capacity given above is the maximum rating per spring.
