Top Link Pins
Available in a Variety of Sizes from Cat 0 to Cat 3. Yellow Zinc Dichromate Plated.

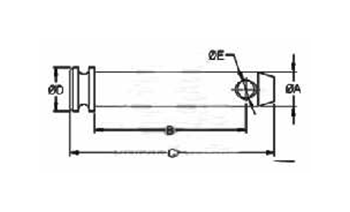

| Part No. | CAT | A(mm) | (B)mm | (C)mm | (D)mm | (E)mm | WEIGHT IN KG. |
| HB TLP 51001 | 0 | 16 | 43 | 70 | 22 | 8 | 0.11 |
| HB TLP 51002 | 0 | 16 | 71 | 102 | 22 | 9 | 0.166 |
| HB TLP 51003 | 0 | 16 | 80 | 113 | 19 | 7 | 0.166 |
| HB TLP 51004 | 1 | 19 | 52 | 90 | 22 | 12 | 0.181 |
| HB TLP 51005 | 1 | 19 | 57 | 90 | 22 | 12 | 0.181 |
| HB TLP 51006 | 1 | 19 | 76 | 113 | 22 | 12 | 0.226 |
| HB TLP 51007 | 1 | 19 | 92 | 127 | 22 | 12 | 0.26 |
| HB TLP 51008 | 1 | 19 | 102 | 138 | 22 | 12 | 0.285 |
| HB TLP 51009 | 1 | 19 | 102 | 138 | 24 | 12 | 0.285 |
| HB TLP 51010 | 1 | 19 | 127 | 163 | 22 | 12 | 0.345 |
| HB TLP 51011 | 1 | 19 | 127 | 163 | 24 | 12 | 0.38 |
| HB TLP 51012 | 2 | 25.4 | 102 | 140 | 28 | 12 | 0.512 |
| HB TLP 51013 | 2 | 25.4 | 109 | 148 | 28 | 12 | 0.532 |
| HB TLP 51014 | 2 | 25.4 | 115 | 154 | 28 | 12 | 0.752 |
| HB TLP 51015 | 2 | 25.4 | 116 | 154 | 28 | 12 | 0.57 |
| HB TLP 51016 | 2 | 25.4 | 120 | 156 | 28 | 12 | 0.462 |
| HB TLP 51017 | 2 | 25.4 | 142 | 180 | 28 | 12 | 0.668 |
| HB TLP 51018 | 2 | 28 | 77 | 116 | 32 | 12 | 0.571 |
| HB TLP 51019 | 2 | 28 | 95 | 133 | 32 | 12 | 0.625 |
| HB TLP 51020 | 2 | 28 | 101.6 | 127 | 32 | 12 | 0.64 |
| HB TLP 51021 | 2 | 28 | 115 | 154 | 32 | 12 | 0.694 |
| HB TLP 51022 | 2 | 28 | 129 | 164 | 32 | 12 | 0.731 |
| HB TLP 51023 | 3 | 32 | 90 | 127 | 38 | 12 | 0.775 |
