Lynch Pins
Our lynch pins have over the center ring loop design that can be attached to the head snaps down hard to hold the fastener in place. Resistant to corrosion, these pins are made from zinc plated carbon steel and yellow chromate dipped. We also specialize in manufacturing heavy lynch rings for extreme applications.
*Special Packaging: We Provide these goods with Barcode Labels / Single / Two Piece Pack / Bulk Case Packaging / Barcode Flag Labels / Assortments.

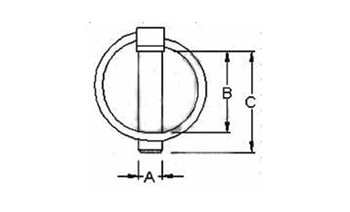

| Part No. | A | B | C | Ship Weight | |||
| inch | mm | inch | mm | inch | mm | In Kg. | |
| HB LP 83001 | 3/16 | 4.5 | 1 | 25.4 | 1-1/4 | 32 | 0.012 |
| HB LP 83002 | 3-16 | 4.5 | 1-1/4 | 32 | 1-7/16 | 36 | 0.013 |
| HB LP 83003 | 3/16 | 4.5 | 1-7/16 | 36 | 1-3/4 | 45 | 0.016 |
| HB LP 83004 | 1/4 | 6 | 1 | 25.4 | 1-1/4 | 32 | 0.016 |
| HB LP 83005 | 1/4 | 6 | 1-27/64 | 36 | 1-3/4 | 45 | 0.022 |
| HB LP 83006 | 9/32 | 7 | 1-7/16 | 36 | 1-11/16 | 43 | 0.025 |
| HB LP 83007 | 5/16 | 8 | 1-7/16 | 36 | 1-3/4 | 45 | 0.029 |
| HB LP 83008 | 3/8 | 9.5 | 1-7/16 | 36 | 1-11/16 | 43 | 0.034 |
| HB LP 83009 | 3/8 | 9.5 | 1-7/16 | 36 | 2 | 51 | 0.042 |
| HB LP 83010 | 3/8 | 9.5 | 1-7/16 | 36 | 1-3/4 | 45 | 0.038 |
| HB LP 83011 | 0.393 | 10 | 1-7/16 | 36 | 1-3/4 | 45 | 0.042 |
| HB LP 83012 | 0.393 | 10 | 1-3/16 | 56 | 2-1/2 | 63 | 0.034 |
| HB LP 83013 | 0.413 | 10.5 | 1-7/16 | 36 | 1-3/4 | 45 | 0.043 |
| HB LP 83014 | 7/16 | 11 | 1-3/4 | 45 | 2 | 51 | 0.061 |
| HB LP 83015 | 7/16 | 11 | 1-7/16 | 36 | 1-3/4 | 45 | 0.050 |
| HB LP 83016 | 7/16 | 11 | 1-7/16 | 36 | 2 | 51 | 0.061 |
| HB LP 83017 | 7/16 | 11 | 1-9/16 | 40 | 2 | 51 | 0.058 |
| HB LP 83018 | 7/16 | 11 | 2-9/32 | 58 | 2-3/4 | 70 | 0.073 |
| HB LP 83019 | 15/32 | 12 | 1-7/16 | 36 | 1-3/4 | 45 | 0.056 |
| HB LP 83020 | 0.43 | 11 | 1.42 | 36 | 1.73 | 44 | 0.050 |
| HB LP 83021 | 0.43 | 11 | 1.58 | 40 | 1.97 | 50 | 0.062 |
| HB LP 83022 | 0.43 | 11 | 1.77 | 45 | 2 | 51 | 0.061 |
