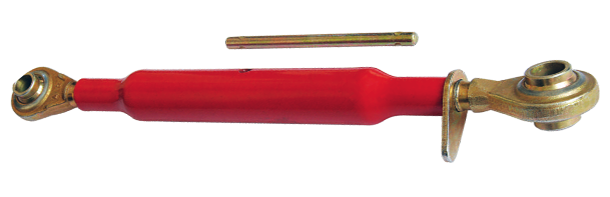

Metric Top Link Assemblies
Standard Duty Top Links in Cat 0,1, 1 & 2 Combination, 2&3 Sizes. Yellow Zinc Dichromate Plated Centre Tube and Clear Zinc Plated Repair Ends Unless Otherwise Specified.

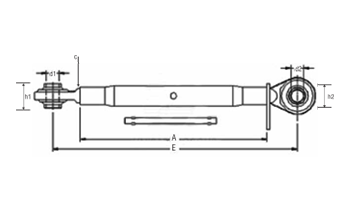

| Part No. | CAT. | Tube Length | Thread Size | LH | RH | Min/ Max. |
| (d1 - d2) | (A) MM | (B) | Ball Id/Height | Ball Id/Height | (E) | |
| D1/H1 | D2/H2 | |||||
| HB TLA 2001 | 1-1 | 190 | M20 X 2.5 | 19/44 | 19/44 | 275/415 |
| HB TLA 2002 | 1-1 | 160 | M22 X 2.5 | 19/44 | 19/44 | 250/350 |
| HB TLA 2003 | 1-1 | 230 | M22 X 2.5 | 19/44 | 19/44 | 330/500 |
| HB TLA 2004 | 1-1 | 300 | M22 X 2.5 | 19/44 | 19/44 | 400/560 |
| HB TLA 2005 | 1-1 | 320 | M24 X 2 | 19/44 | 19/44 | 430/580 |
| HB TLA 2006 | 1-1 | 370 | M24 X 2 | 19/44 | 19/44 | 480/620 |
| HB TLA 2007 | 1-1 | 180 | M27 X 3 | 19/44 | 19/44 | 285/335 |
| HB TLA 2008 | 1-1 | 220 | M27 X 3 | 19/44 | 19/44 | 320/450 |
| HB TLA 2009 | 1-1 | 275 | M27 X 3 | 19/44 | 19/44 | 380/530 |
| HB TLA 2010 | 1-1 | 320 | M27 X 3 | 19/44 | 19/44 | 430/640 |
| HB TLA 2011 | 1-1 | 370 | M27 X 3 | 19/44 | 19/44 | 480/690 |
| HB TLA 2012 | 1-1 | 400 | M27 X 3 | 19/44 | 19/44 | 505/685 |
| HB TLA 2013 | 1-1 | 430 | M27 X 3 | 19/44 | 19/44 | 540/750 |
| HB TLA 2014 | 1-1 | 470 | M27 X 3 | 19/44 | 19/44 | 580/790 |
| HB TLA 2015 | 1-1 | 550 | M27 X 3 | 19/44 | 19/44 | 655/835 |
| HB TLA 2016 | 1-1 | 570 | M27 X 3 | 19/44 | 19/44 | 680/890 |
| HB TLA 2017 | 1-2 | 275 | M27 X 3 | 19/44 | 25.4/51 | 400/550 |
| HB TLA 2018 | 1-2 | 320 | M27 X 3 | 19/44 | 25.4/51 | 435/605 |
| HB TLA 2019 | 1-2 | 360 | M27 X 3 | 19/44 | 25.4/51 | 480/680 |
| HB TLA 2020 | 1-2 | 400 | M27 X 3 | 19/44 | 25.4/51 | 520/730 |
| HB TLA 2021 | 1-2 | 470 | M27 X 3 | 19/44 | 25.4/51 | 580/820 |
| HB TLA 2022 | 1-2 | 550 | M27 X 3 | 19/44 | 25.4/51 | 670/880 |
| HB TLA 2023 | 2-2 | 180 | M27 X 3 | 25.4/51 | 25.4/51 | 315/365 |
| HB TLA 2024 | 2-2 | 220 | M27 X 3 | 25.4/51 | 25.4/51 | 350/550 |
| HB TLA 2025 | 2-2 | 275 | M27 X 3 | 25.4/51 | 25.4/51 | 410/560 |
| HB TLA 2026 | 2-2 | 320 | M27 X 3 | 25.4/51 | 25.4/51 | 445/645 |
| HB TLA 2027 | 2-2 | 320 | M27 X 3 | 25.4/51 | 25.4/51 | 460/680 |
| HB TLA 2028 | 2-2 | 350 | M27 X 3 | 25.4/51 | 25.4/51 | 485/685 |
| HB TLA 2029 | 2-2 | 380 | M27 X 3 | 25.4/51 | 25.4/51 | 510/710 |
| HB TLA 2030 | 2-2 | 400 | M27 X 3 | 25.4/51 | 25.4/51 | 510/750 |
| HB TLA 2031 | 2-2 | 430 | M27 X 3 | 25.4/51 | 25.4/51 | 540/780 |
| HB TLA 2032 | 2-2 | 450 | M27 X 3 | 25.4/51 | 25.4/51 | 580/820 |
| HB TLA 2033 | 2-2 | 500 | M27 X 3 | 25.4/51 | 25.4/51 | 625/830 |
| HB TLA 2034 | 2-2 | 550 | M27 X 3 | 25.4/51 | 25.4/51 | 670/920 |
