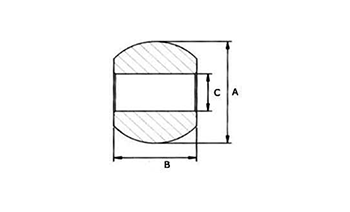

Replacement Ball
Replacement Balls for Cat 0,1,2 & 3 Hardened Yellow Zinc Plated.
| Part No. | A | B | C |
| HB LLB 29001 | 40 | 28 | 18 |
| HB LLB 29002 | 44 | 35 | 22 |
| HB LLB 29003 | 46 | 35 | 22 |
| HB LLB 29004 | 46 | 35 | 25 |
| HB LLB 29005 | 46 | 35 | 28 |
| HB LLB 29006 | 48 | 35 | 28 |
| HB LLB 29007 | 50 | 35 | 22 |
| HB LLB 29008 | 50 | 35 | 28 |
| HB LLB 29009 | 56 | 35 | 22 |
| HB LLB 29010 | 56 | 35 | 28 |
| HB LLB 29011 | 56 | 45 | 22 |
| HB LLB 29012 | 56 | 45 | 28 |
| HB LLB 29013 | 57 | 35 | 28 |
| HB LLB 29014 | 57 | 35 | 22 |
| HB LLB 29015 | 57 | 38 | 25 |
| HB LLB 29016 | 57 | 38 | 28 |
| HB LLB 29017 | 60 | 44 | 32 |
| HB LLB 29018 | 60 | 44 | 36 |
| HB LLB 29019 | 62 | 45 | 28 |
| HB LLB 29020 | 64 | 45 | 28 |
| HB LLB 29021 | 64 | 45 | 35 |
| HB LLB 29022 | 64 | 45 | 37 |
| HB LLB 29023 | 64 | 45 | 38 |

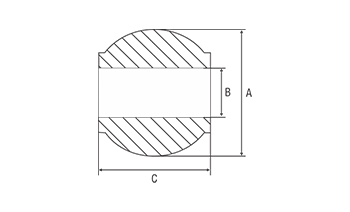

Top Link Replacement Ball
Replacement Balls for Cat 0,1,2 & 3 Hardened Yellow Zinc Plated.
| Part No. | A(mm) | B(mm) | Length C(mm) |
| HB TLB 30001 | 38 | 19 | 44 |
| HB TLB 30002 | 42 | 19 | 44 |
| HB TLB 30003 | 50 | 25 | 51 |
| HB TLB 30004 | 54 | 25 | 51 |
| HB TLB 30005 | 54 | 32 | 51 |
| HB TLB 30006 | 60 | 25 | 51 |
| HB TLB 30007 | 60 | 32 | 51 |
| HB TLB 30008 | 62 | 25 | 51 |
| HB TLB 30009 | 62 | 32 | 51 |
| HB TLB 30010 | 57 | 32 | 51 |
| HB TLB 30011 | 78 | 40 | 75 |
| HB TLB 30012 | 78 | 45 | 75 |
| HB TLB 30013 | 78 | 40 | 65 |
