Ring Detent Pin
Our Ring Detent pin allow for fast and easy insertion and removal of pin. Replaces pins that require a cotter pin style. Available in 3/16", 5/16", 7/16", 1/4", 3/8" & 1/2" diameter. Zinc plated carbon steel.

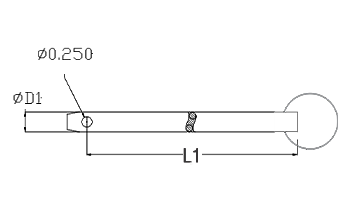

| Part No. | Shaft Dia | Usable Dia |
| HB DP 65001 | 3/16 " | 1 " |
| HB DP 65002 | 3/16 " | 1-1/2 " |
| HB DP 65003 | 3/16 " | 2 " |
| HB DP 65004 | 3/16 " | 3 " |
| HB DP 65005 | 1/4 " | 1-1/4 " |
| HB DP 65006 | 1/4 " | 1-1/2 " |
| HB DP 65007 | 1/4 " | 2 " |
| HB DP 65008 | 1/4 " | 3 " |
| HB DP 65009 | 1/4 " | 4 " |
| HB DP 65010 | 1/4 " | 5 " |
| HB DP 65011 | 5/16 " | 1-1/2 " |
| HB DP 65012 | 5/16 " | 2 " |
| HB DP 65013 | 5/16 " | 2-1/2 " |
| HB DP 65014 | 5/16 " | 3 " |
| HB DP 65015 | 5/16 " | 4 " |
| HB DP 65016 | 5/16 " | 5 " |
| HB DP 65017 | 3/8 " | 1 " |
| HB DP 65018 | 3/8 " | 1-1/2 " |
| HB DP 65019 | 3/8 " | 2 " |
| HB DP 65020 | 3/8 " | 3 " |
| HB DP 65021 | 3/8 " | 4 " |
| HB DP 65022 | 3/8 " | 5 " |
| HB DP 65023 | 7/16 " | 2 " |
| HB DP 65024 | 7/16 " | 3 " |
| HB DP 65025 | 7/16 " | 4 " |
| HB DP 65026 | 7/16 " | 5 " |
| HB DP 65027 | 1/2 " | 1 " |
| HB DP 65028 | 1/2 " | 1-1/2 " |
| HB DP 65029 | 1/2 " | 2 " |
| HB DP 65030 | 1/2 " | 2-1/2 " |
| HB DP 65031 | 1/2 " | 3 " |
| HB DP 65032 | 1/2 " | 4 " |
| HB DP 65033 | 1/2 " | 5 " |
