TOWING AIDS, WEIGHT DISTRIBUTION KITS
TOWBALL RETENTION PLATE
HT-5001
Fits between the towbar tongue and the towball to prevent rotation of the ball.
SPECIFICATIONS:
* Hole size: 23mm
* Overall size: 100mm(l) x 60mm(w)
R CLIPS : HR-01

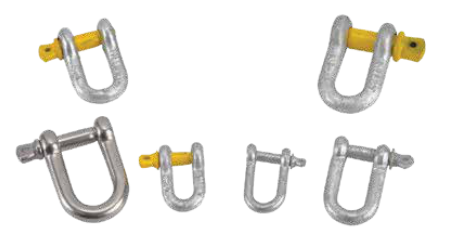

D SHACKLES
* HDS-1001 - D SHACKLE AND BRIM 5MM
* HDS-1002 - D SHACKLE AND BRIM 8MM
* HDS-1003 - D SHACKLE AND BRIM 10MM
* HDS-1004 - D SHACKLE AND BRIM 12MM
* HDS-1005 - D SHACKLE AND BRIM GAL 8MM 750KG
* HDS-1006 - D SHACKLE AND BRIM GAL 10MM 1000KG
* HDS-1007 - D SHACKLE AND BRIM GAL 11MM 1500KG
* HDS-1008 - D SHACKLE AND BRIM GAL 13MM 2000KG
TOWING ACCESSORIES

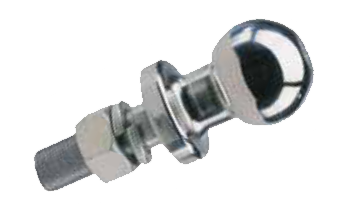

TOWBALL - MACHINED
HHB-5001
Standard towball size
SPECIFICATIONS:
* 50mm x 62mm x 7/8”
* 62mm shank
* Towing Capacity: 3500kg
* Chrome plated

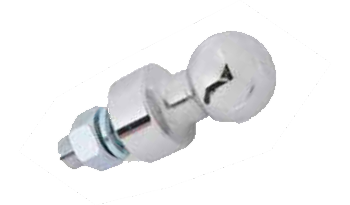

TOWBALL HIGH RISE - MACHINED
HHB-5002
High rise towball size with 25mm rise
SPECIFICATIONS:
* 50mm x 51mm x 7/8”
* 51mm shank
* Towing Capacity: 2000kg
* Chrome plated

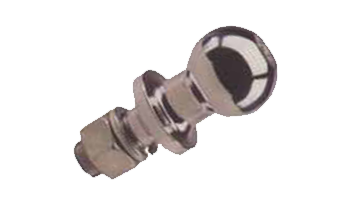

TOWBALL - MACHINED
HHB-5003
1 7/8" chrome plated towball
SPECIFICATIONS:
* Towing Capacity: 2270kg
* Shaft length 51mm
* Shank Size: 7/8” (diam x 51mm(l)
* Chrome

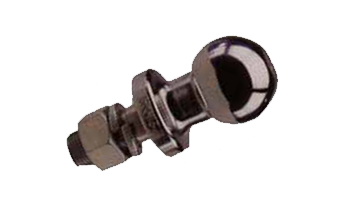

TOWBALL 3T - MACHINED
HHB-5004
SPECIFICATIONS:
* 50mm x 25mm

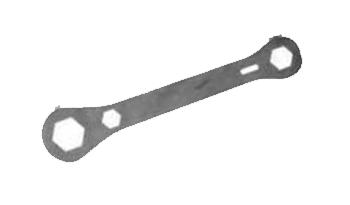

TOWBALL SPANNER
HHB-5006
Used for Towball Nuts, Snap-up Bracket Bolts, D Shackles, Towbar Tongue Bolts and Adjustable Ball Mount Bolts and Nuts.
