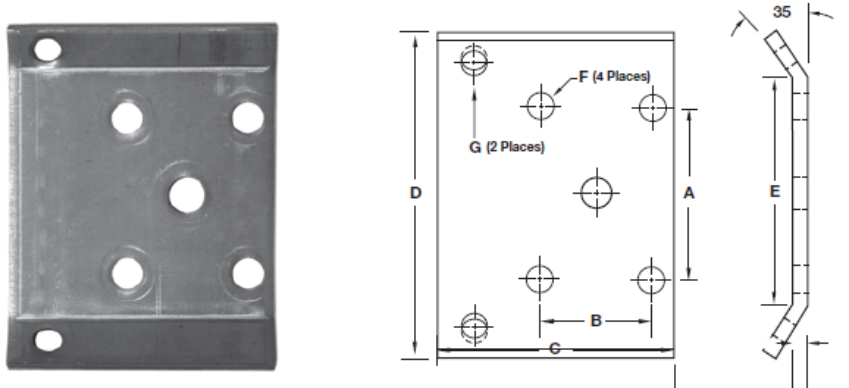

SHOCK TIE PLATES
| Part No. | Tube | Spring | Dimensions | Case | Case | ||||||
| Dia. | Width | A | B | C | D | E | F | G | Qty. | Wt. | |
| HST-3001 | 2.38" | 1.75" | 2.94" | 2.31" | 5.00" | 5.92" | 4.69" | 0.56" | 0.53" | 1,500pc. | 3,128 lb |
| HST-3002 | 3.00" | 2.00" | 3.62" | 2.38" | 5.00" | 5.92" | 4.69" | 0.56" | 0.53" | 1500 | 3128 |

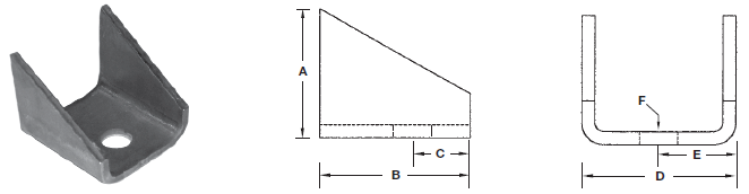

SHOCK MOUNTING BRACKETS
| Part No. | Dimensions | Case | Case | |||||
| A | B | C | D | E | F | Qty. | Wt. | |
| HSM-4001 | 1.75" | 2.00" | 0.69" | 2.05" | 1.02" | 0.50" | 1,000 pc. | 400 lb |
| HSM-4002 | 2.75" | 3.25" | 0.69" | 2.05" | 1.02" | 0.50" | 1000 | 760 |
