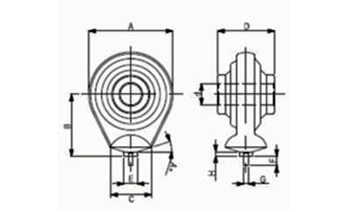

Top Link Ball End With Centering Pin
| Part No. | d | D | A | B | C | E | F | G | H |
| HB WE 26001 | 19 | 51 | 75 | 55 | 35 | 12 | 6 | 4 | 4 |
| HB WE 26002 | 22.1 | 51 | 75 | 55 | 35 | 12 | 6 | 4 | 4 |
| HB WE 26003 | 25.4 | 51 | 75 | 55 | 35 | 12 | 6 | 4 | 4 |
| HB WE 26004 | 30 | 51 | 75 | 55 | 35 | 12 | 6 | 4 | 4 |

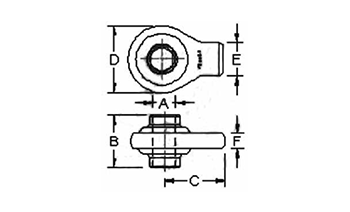

Top Link Weld On Ball Ends
Forged Top Link Weld-on Ball Ends for Cat 1 & Cat 2 Tractors. Black Phosphate Housing and Zinc Plated Ball.
| Part No. | CAT | A(mm) | B(mm) | C(mm) | D(mm) | E(mm) | F(mm) | WEIGHT IN KG. |
| HB TWE 27001 | 1 | 19 | 44 | 51 | 56 | 28 | 13 | 0.404 |
| HB TWE 27002 | 2 | 25.4 | 51 | 60 | 67 | 28 | 16 | 0.675 |

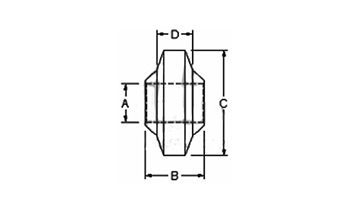

Lift Arm Ball Sockets
Weld-on lift arm Ball Sockets to fit cat 0 through cat 3 tractors. Yellow zinc dichromate plated or black phosphate finish.
| Part No. | CAT | Pin Hole | Length Thru | Sleeve Outer | Sleeve Width | WEIGHT |
| Size(A) mm | Bore(B) mm | Dia(C) mm | (D) mm | IN KG. | ||
| HB BS 28001 | 0 | 16 | 25.4 | 51 | 19 | 0.26 |
| HB BS 28002 | 1 | 22 | 35 | 60 | 22 | 0.39 |
| HB BS 28003 | 1 & 2 | 22 & 28.5 | 45 | 70 | 30 | 0.65 |
| HB BS 28004 | 1 & 2 | 22 & 28.5 | 45 | 80 | 35 | 0.4 |
| HB BS 28005 | 2 | 29 | 32 | 60 | 24 | 0.32 |
| HB BS 28006 | 2 | 29 | 45 | 70 | 32 | 0.885 |
| HB BS 28007 | 2 | 29 | 45 | 80 | 35 | 0.87 |
| HB BS 28008 | 3 | 36 | 45 | 89 | 34 | 1.13 |
| HB BS 28009 | 0 | 16 | 25 | 51 | 19 | 0.26 |
| HB BS 28010 | 1 | 22 | 35 | 60 | 22 | 0.39 |
| HB BS 28011 | 1 & 2 | 22 & 28.5 | 45 | 70 | 30 | 0.65 |
| HB BS 28012 | 1 & 2 | 22 & 28.5 | 45 | 80 | 35 | 0.4 |
| HB BS 28013 | 2 | 29 | 32 | 60 | 24 | 0.32 |
| HB BS 28014 | 2 | 29 | 45 | 70 | 32 | 0.885 |
| HB BS 28015 | 2 | 29 | 45 | 80 | 35 | 0.87 |
| HB BS 28016 | 3 | 36 | 45 | 89 | 34 | 1.13 |
