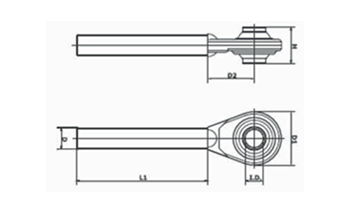

| Part No. |
CAT |
I.D. |
Threaded D |
L1 |
D1 |
D2 |
H |
| HB TLE 13001 |
0 |
16 |
3/4"UNC R |
105 |
47 |
30 |
25.4 |
| HB TLE 13002 |
0 |
16 |
3/4"UNC L |
105 |
47 |
30 |
25.4 |
| HB TLE 13003 |
1 |
19 |
1.1/8"UNC R |
150 |
58 |
53 |
44 |
| HB TLE 13004 |
1 |
19 |
1.1/8"UNC L |
150 |
58 |
53 |
44 |
| HB TLE 13005 |
2 |
25.4 |
1.1/8"UNC R |
180 |
66 |
55 |
51 |
| HB TLE 13006 |
2 |
25.4 |
1.1/8"UNC L |
180 |
66 |
55 |
51 |
| HB TLE 13007 |
2 |
25.4 |
1.1/4"UNC R |
180 |
76 |
62 |
51 |
| HB TLE 13008 |
2 |
25.4 |
1.1/4"UNC L |
180 |
76 |
62 |
51 |
| HB TLE 13009 |
3 |
32 |
1.3/8"UNC R |
155 |
89 |
76 |
51 |
| HB TLE 13010 |
3 |
32 |
1.3/8"UNC L |
155 |
89 |
76 |
51 |
| Part Number |
Flat Locking Collar |
Forged Locking Collar |
| Thread size |
Thread size |
| HB LC 14001 |
16x2 |
27x3 |
| HB LC 14002 |
20x2½ |
30x3 |
| HB LC 14003 |
22x2½ |
36x3 |
| HB LC 14004 |
27x3 |
40x3 |
| HB LC 14005 |
30x3 |
|
| HB LC 14006 |
36x3 |
|
| HB LC 14007 |
40x3 |
|
| HB LC 14008 |
1-1/8x7UNC |
|

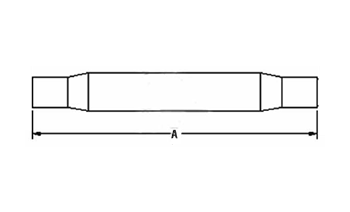

| Part Number |
A(mm) |
| HB CT 15001 |
335 |
| HB CT 15002 |
405 |
| HB CT 15003 |
438 |
| HB CT 15004 |
476 |
| HB CT 15005 |
480 |
| HB CT 15006 |
508 |
| HB CT 15007 |
546 |
