U-BOLTS

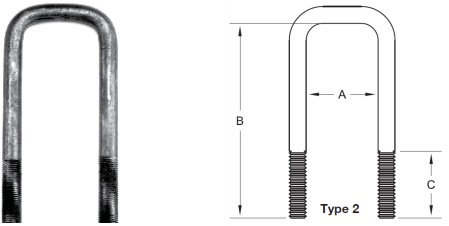

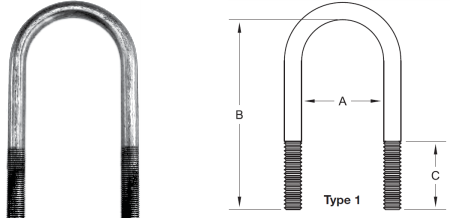

| Part No. | Type | Tube | Spring | Thread | Dimensions | Unit | Case | Case | ||
| Dia. | Width | Size | A | B | C | No. | Qty. | Wt. | ||
| HUB-2201 | 1 | 1.75" | 1.75" | 3/8"-16 | 1.81" | 4.29" | 2.00" | 0.24 lb. | 4,000 pc. | 1,100 lb. |
| HUB-2202 | 1 | 1.75 | 1.75 | 3/8"-24 | 1.81 | 4.29 | 2.00 | 0.24 | 4,000 | 1,100 |
| HUB-2203 | 1 | 1.75 | 1.75 | 1/2"-20 | 1.81 | 4.29 | 2.00 | 0.49 | 2,000 | 1,000 |
| HUB-2204 | 1 | 2.38 | 1.75"/2.00" | 7/16"-20 | 2.44 | 5.13 | 2.00 | 0.46 | 7,000 | 3,300 |
| HUB-2205 | 1 | 2.38 | 1.75"/2.00" | 1/2"-20 | 2.44 | 5.50 | 2.00 | 0.62 | 5,000 | 3,150 |
| HUB-2206 | 1 | 2.38 | 1.75"/2.00" | 1/2"-20 | 2.44 | 6.25 | 3.00 | 0.70 | 1,000 | 750 |
| HUB-2207 | 1 | 3.00 | 1.75"/2.00" | 1/2"-20 | 3.09 | 6.50 | 2.00 | 0.74 | 4,000 | 3,000 |
| HUB-2208 | 1 | 3.00 | 1.75"/2.00" | 1/2"-20 | 3.09 | 7.00 | 2.00 | 0.78 | 3,500 | 2,900 |
| HUB-2209 | 1 | 3.00 | 1.75"/2.00" | 9/16"-18 | 3.09 | 7.00 | 3.00 | 1.02 | 2,500 | 2,750 |
| HUB-2210 | 1 | 3.50 | 2.00 | 9/16"-18 | 3.56 | 8.00 | 2.00 | 1.16 | 300 | 500 |
| HUB-2211 | 1 | 5.00 | 2.50"/3.00" | 5/8"-11 | 5.06 | 9.00 | 2.00 | 1.89 | 1,500 | 2,900 |
| HUB-2212 | 2 | 2.00 | 1.75 | 9/16"-18 | 2.06 | 5.75 | 2.50 | 0.82 | 1,000 | 950 |
| HUB-2213 | 2 | 2.00 | 1.75 | 9/16"-18 | 2.09 | 6.50 | 2.50 | 0.95 | 3,200 | 3,100 |
• Material : SAE 1018 Hot Rolled.
• Stainless steel available, call for lead time and pricing.
• Available with clear or yellow chromate on zinc plating and galvanized, call for lead time and pricing.
• Letter at the end of the part number denotes course © or line (F) thread.
• The specifications and dimensions above are for reference only.
