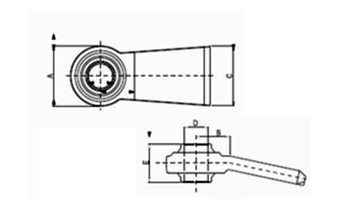

Weld On End Bend Type (URSUS)
| Part No. | D | E | A | B | C |
| HB WE 22001 | 28.4 | 45 | 71 | 40 | 70 |

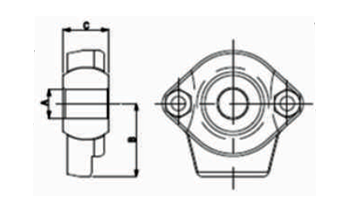

Lower Link Ball End Flat Type
| Part No. | CAT | A | C | B |
| HB WE 23001 | 1 | 22.1 | 35 | 55 |
| HB WE 23002 | 2 | 25.4 | 35 | 55 |
| HB WE 23003 | 2 | 28.4 | 35 | 55 |
| HB WE 23004 | 2 | 28.4 | 45 | 55 |

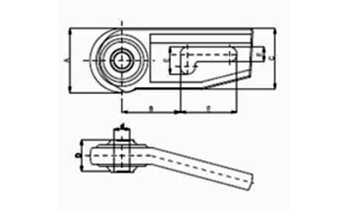

Ball Joint With Slot
| Part No. | d | D | A | B | C | E-SLOT | |
| HB WE 24001 | 28.4 | 45 | 76 | 85 | 95 | 28X45X95 | L |
| HB WE 24002 | 28.4 | 45 | 76 | 85 | 95 | 28X45X95 | R |
| HB WE 24003 | 37 | 45 | 94 | 90 | 95 | 28X45X95 | L |
| HB WE 24004 | 37 | 45 | 94 | 90 | 95 | 28X45X95 | R |

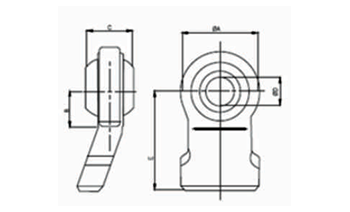

Weld On End With Base
| Part No. | D | E | A | B | C |
| HB WE 25001 | 28.4 | 45 | 100 | 130 | 100 |
| HB WE 25002 | 37 | 45 | 100 | 130 | 100 |
| HB WE 25003 | 38 | 45 | 100 | 130 | 100 |
